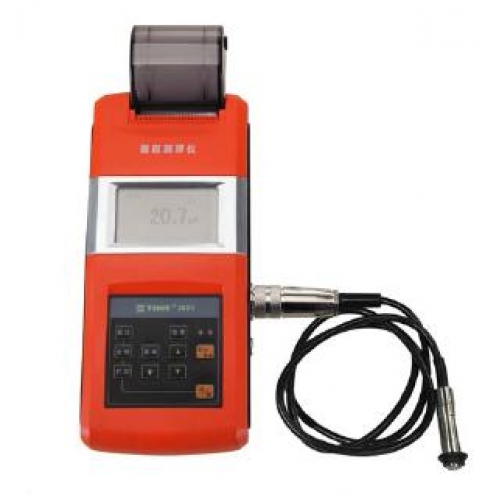

 Click to enlarge |
|
Features:
Two measuring methods: magnetic induction (F) and eddy current (N). When F probe is equipped, it can measure the non-magnetic coating in magnetism substrate, when N probe is equipped, it measure the non-conductive coating on non-magnetism substrate
6 types of probes are available for various applications:F400,F1,F1/90,F10,N1,CN02
2 measuring ways: continue / single
2 working modes: Direct and Batch
5 statistical ways: Mean values / Max. values / Min. values / testing numbers.(No.) / standard deviations (S.DeV)
640 measured values can be stored
Integrated with printer for convinient use
Technical Specification:
|
Standards |
DIN, ISO, ASTM,BS |
|
Calibration |
Zero and foil calibration |
|
Statistics |
Number of measurements, mean, standard deviation, |
|
Data memory |
640 readings |
|
Limits |
Adjustable with alarm |
|
Interface |
RS-232 |
|
Working temperature |
0-40℃ |
|
power supply |
NiMH rechargeable battery |
|
Dimensions |
230mm×86mm×47mm |
|
Weight |
Approx. 530g |
|
|
|||||
|
|||||
Optional probes and technical specification:
|
Probe model |
F400 |
F1 |
F1/90º |
F10 |
N1 |
CN02 |
|||
|
Operating principle |
Magnetic induction |
Eddy current |
|||||||
|
Measuring range (µm) |
0-400 |
0-1250 |
0-10000 |
0 to 1250 μm |
10~200 |
||||
|
Low range resolution (µm) |
0.1 |
0.1 |
10 |
0.1 |
1 |
||||
|
Accuracy |
One-point calibration (µm) |
±(3%H+1) |
±(3%H+10) |
±(3%H+1.5) |
±(3%H+1) |
||||
|
Two-point calibration (µm) |
±[(1~3)H%+0.7] |
±[(1~3)H%+1] |
±[(1~3)%H+10] |
±[(1~3)%H+1.5] |
- |
||||
|
Measuring conditions |
Min curvature of the min area (mm) |
Convex |
1 |
1.5 |
Flatten |
10 |
3 |
Flatten |
|
|
Diameter of the min area (mm) |
φ3 |
φ7 |
φ7 |
φ40 |
φ5 |
φ7 |
|||
|
Critical thickness of substrate (mm) |
0.2 |
0.5 |
0.5 |
2 |
0.3 |
unlimited |
|||
