Features:
●One machine with both central force pressure and single point pressure, two methods can be quickly switch.
●The automatic grinding system can adjust the sample preparation pressure, grinding time and speed, with easy
setting and operation.
●The machine adopts high-definition LCD touch screen control and display.
●The electromagnetic lock of the polishing head has an automatic locking function. After locking, the polishing
head will be locked and the clamping plate will also be in a fixed position for sample making.
●The central force application device can clamp irregular specimens, and the clamping method is simple to
operate. Two types of application devices can be quickly switch.
●Single point force application device, holding regular samples, can adjust the pressure through electromagnetic
proportional valve, and the clamping method is simple to operate. Two types of application devices can be quickly
switch.
●Quick disc replacement system, equipped with magnetic discs and anti stick discs, can quickly replace sandpaper
and flannel, reducing the frequency and loss of replacing sand consumables.

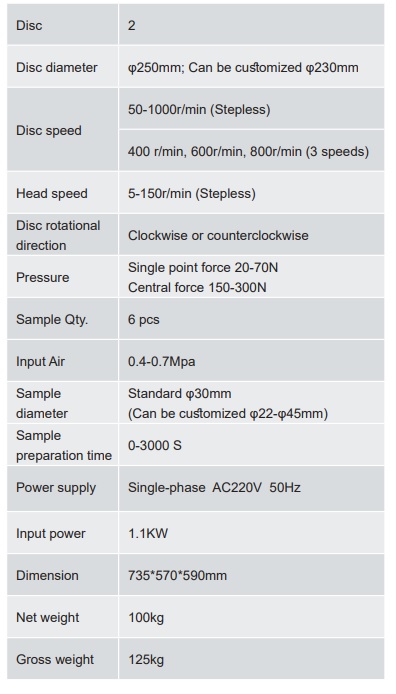

Technical Specification:
|
|
|||||
|
|||||
